Sprint® Mag Digital Family

Patented, magnetic assisted lockdown with automatic release

The Sprint® Mag heat presses are especially user-friendly, as they work without a compressor, yet still have an auto-open feature utilising built-in magnets. The machines offer digital timer, pressure and temperature displays, and there are also two adjustable print settings.

The Sprint® Mag is produced in several different sizes to ensure that there is a platen to meet every requirement.

  • The XS model comes with a 15 x 15cm platen making it perfect for applying labels, and printing onto chest and sleeves.

  • The Sprint®Mag is also available with platens of 28 x 38cms; 40 x 40cms; and 40 x 50cms.

A “hover” version is also available developed especially for the direct-to-garment market.

A Cap press is also available offering a platen size of 9 x 16cms.

There is a range of interchangeable lower platens for Sprint® Mag presses which greatly increases the presses versatility.

Sprint® Mag Digital
Sprint® Mag Digital

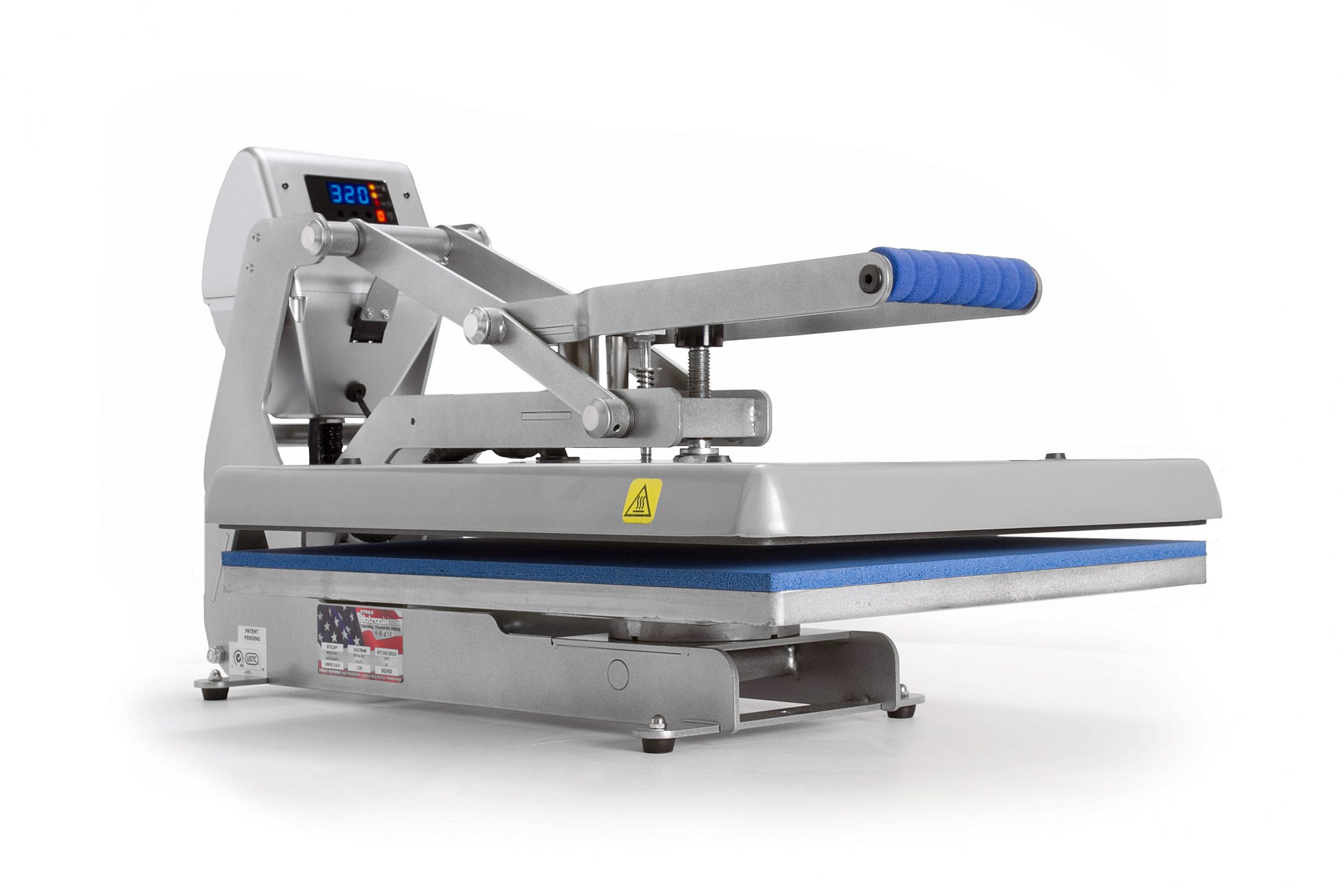

The 40 x 50cm (16″ x 20″) Hotronix® Auto Opening Clam Press is the pinnacle of heat press technology, and has all the operating features of the smaller presses, which means that the press can undertake any type of job.

Sprint® Mag Digital auto open
Sprint® Mag Digital auto open



Available as

  • 11“ x 15“ (28cm x 38cm)
    16“ x 16“ (40cm x 40cm)
    16“ x 20“ (40cm x 50cm)

Shipping Size and Weight:

  • 35″ L x 25″ W x 21″ H • 72/90/100 lbs
  • 91cm L x 64cm B x 53cm H • 32/40/45 kg
  • Patented, magnetic assisted
    lockdown with automatic release
  • Fully digital time and
    temperature controls
  • Live digital pressure display
  • Twin Timer™ for two step
    applications with 999 sec dwell time
  • 3/4″ thick non-stick coated
    upper platen
  • Patented Over-the-center pressure adjustment
  • Optional lower platens available
  • Space saving clam shell design
  • Wide opening for easy layout
  • Premium warranty
  • UL/ULC/CE/RoHS Compliant



Sprint® Mag Digital auto open XS  15cm  x 15cm

The 15 x 15 cm heat press is ideal for printing smaller transfers such as labels, tags, sleeve logos and more.

This heat press features automatic release without the use of an air compressor and magnetic assisted lock down for maximum pressure with minimal effort. This heat press also has fully digital time and temperature controls for to the degree accuracy and 999 second dwell time.

The space saving clam shell design allows more room for multiple heat press machines which helps create an environment for maximum
potential and production.

Sprint® Mag Digital auto open XS
Sprint® Mag Digital auto open XS 15cm x 15cm

Specifications:

  • 120 Volt, 360 Watt, 3 Amp
  • 220 Volt, 360 Watt, 2 Amp
  • 6″ x 6″ (15cm x 15cm)
  • Shipping dimensions and weight:
    26″L x 15″W x 20″H • 41 lbs | 66cm L x 38cm B x 53 cm H • 18 k g
  • Patented, magnetic assisted
    lockdown with automatic release
  • Fully digital time and
    temperature controls
  • Live digital pressure display
  • Twin Timer™ for two step
    applications with 999 sec dwell time
  • 3/4″ thick non-stick coated
    upper platen
  • Space saving clam shell design
  • Wide opening for easy layout
  • Premium warranty
  • UL/ULC/CE/RoHS Compliant

Hotronix® Hover Press™

A brand new patent pending heat press manufactures exclusively by Stahls’ Hotronix®.

The Hover Press™ includes digital time, temperature and pressure displays and allows the operator to set the press for two functions:
hover or pressure.

The Hotronix® Hover Press™ also features the new Twin Timer™ function which allows the user to program two independent time settings to count down any two-step process without resetting the timer.

Hover Press – designed for the direct-to-garment sector

STAHLS’ Warranty:

  • 30 years heating element warranty
  • 5 years on frame work
  • 2 years on circuit board

Specifications:

  • 120 Volt, 1800 Watt, 15 Amp
  • 220 Volt, 1800 Watt, 8 Amp
  • 16″ x 20″ (40cm x 50cm)
  • Shipping dimensions and weight:
    35″L x 25″W x 22″H • 100 lbs
  • Patented, magnetic assisted lockdown with automatic release
  • Fully digital time and temperature controls
  • Live digital pressure display
  • Twin Timer™ for two step applications with 999 sec dwell time
  • 3/4″ thick non-stick coated upper platen
  • Patented Over-the-center pressure adjustment
  • Optional lower platens available
  • Space saving clam shell design
  • Wide opening for easy layout
  • Premium warranty
  • UL/ULC/CE/RoHS Compliant



Sprint® Mag Digital Cap

This cap press features automatic release without the use of an air compressor and magnetic assisted lock down for maximum pressure with minimal effort.
This cap press also has fully digital time and temperature controls. The space saving clam shell design allows more room for multiple heat press machines which helps create an environment for maximum potential and production.

Sprint® Mag Digital Cap
Sprint® Mag Digital Cap

Specifications:

  • 120 Volt, 500 Watt, 4 Amp
  • 220 Volt, 500 Watt, 2.5 Amp
  • 4″ x 8″ (10cm x 20cm)
  • Shipping dimensions and weight:
    26″L x 15″W x 20″H • 41 lbs
  • Patented, magnetic assisted
    lockdown with automatic release
  • Fully digital time and
    temperature controls
  • Live digital pressure display
  • Twin Timer™ for two step
    applications with 999 sec dwell time
  • Quick change lower platen
  • Optional lower platens available
  • 3/4″ thick non-stick coated
    upper platen
  • Space saving clam shell design
  • Wide opening for easy layout
  • Premium warranty
  • UL/ULC/CE/RoHS Compliant

CAD-COLOR SportsFilm_2015

CAD-COLOR SportsFilm_2015

CAD-COLOR SportsFilm_2015

CAD-COLOR SportsFilm_2015

In our  Download page you will find amongst other items full instructions on our Products.
