Electronic Accessories

Sil Air

Kompressor-Sil-Air
  • Connection: 230V / 50 Hz
  • Engine power: 0,34 KW
  • Air intake capacity: 50 L/min
  • Air output power: 37 L/min
  • Pressure performance: max. 8 Bar
  • Container volume: 24 L
  • Acoustic emission: 40 dB(A)/lm
  • Weight: ca. 27 KG
  • Dimensions: 40 cm x 40 cm x 60 cm
  • Note: suitable for connection to Hotronix® Air Fusion IQ™

Manual

Data sheet

Black Panther

Kompressor-Panther
  • Connection: 230V / 50 Hz
  • Engine power: 0,7 KW
  • Air intake capacity: 100 L/min
  • Air output power: 74 L/min
  • Pressure performance: max. 8 Bar
  • Container volume: 24 L
  • Acoustic emission: 42 dB(A)/lm
  • Weight: ca. 43 KG
  • Dimensions: 62 cm x 31 cm x 60 cm
  • Note: suitable for connection to Hotronix® Dual Air Fusion IQ™

Manual

Data sheet

Hotronix® ProPlace IQ™ Retrofit

HTX-ProPlaceIQ-Retrofit_side-view_Stahls-Europe

Extension for the Dual Air Fusion IQ® precision projection technology. Achieve greater efficiency and accuracy with the ProPlace IQ™. This turns the Dual Air Fusion IQ® transfer press into a precision powerhouse.

  • Dimensions approx.: 61 cm (L) x 76 cm (W) x 36 cm (H)
  • Net weight approx.: 14 kg
  • Gross weight approx.: 15 kg

Stand Alone Laser Alignment System

Stand_Alone_Laser_Alignment_System_2_web
  • Dimensions: 56 cm (L) x 34 cm (W) x 19 cm (H)
  • Netto Weight: 3 kg
  • Brutto Weight: 6 kg

Stand Alone Laser Alignment System

Slipcovers

Non-stick coated covers

Fits tightly over your base plate and makes it easy to pull the fabric over it by reducing friction between the fabric and the rubber mat. Protects your base plate from stains.

Schonbezuege
  • Easy to clean
  • does not absorb sublimation colour

Available in the following sizes:

  • 15 cm x 25 cm
  • 20 cm x 25 cm
  • 28 cm x 38 cm
  • 38 cm x 38 cm
  • 40 cm x 40 cm
  • 40 cm x 50 cm

Protective cover for heating plates

Protection for your heating plate.

Heizplattenschonbezug-5-1
  • Easy to clean
  • does not absorb sublimation colour

Available in the following size:

  • 40 cm x 50 cm

Cover sheets

Cover sheets

Cover sheets are used to prevent a vacuum between the transfer and the heating plate and to give the prints different surface structures and finishes. Furthermore, the cover sheets protect your heating plate and your textile from stains.

Antihaft-46x49-web

Cover sheet, non-stick coated:

  • Particularly robust
  • Stains can be easily removed
  • does not absorb sublimation colour
  • achieves a slightly glossy finish and a delicate surface texture
  • 46 cm x 49 cm
Grip-38x48-web

Grip cover sheet:

  • wax coated, not suitable for use with sublimation ink
  • Usually produces a matt surface finish
  • Each side can be used several times
  • ca. 40 x 50 cm
Gummimatte-46x56-800x800

Grip rubber mat:

  • This high-quality silicone sheet is ideal for printing on shoes and for beautifying sensitive textile surfaces (ATTENTION: the mat reduces your printing temperature by approx. 20°C, please note this when printing).
  • Leaves a slightly textured surface
  • 46 cm x 56 cm

Caddies

Heat Press Caddie & Counter Caddie

Caddie
Hotronix-Caddie-SprintFront
Counter-Caddie

More flexibility with the Heat Press Caddie™ Customize your heat press individually to the user: with our Heat Press Caddie™ no problem. With the help of the caddy, your heat press is height-adjustable and can be repositioned at any time, even during operation, if necessary, thanks to the attached rollers. You can turn textiles directly on the bottom plate without removing the textile from the press. This saves you 40% of your production time!

Counter Caddie™. The Counter Caddie™ is the desktop version of the Heat Press Caddie™ and offers you the same advantages during the printing process. However, it does not have a stand and can therefore be used more compactly.

    Specifications:

  • Shipping dimensions: 84 cm (L) x 84 cm (B) x 29 cm (H)
  • Net Weight: 27 kg
  • Gross Weight: 30 kg

A wrench is required for assembly. Heat presses must be purchased separately. Suitable for MAXX™ & Auto Open Clam T-shirt presses (except XS). Please do not hesitate to contact us if you have any questions!

Hotronix® Caddie Shelves

shelves_web

Designed to mount on your Heat Press Caddie™, these sturdy, adjustable storage compartments help you store your transfers, textiles and accessories during press proofing and still keep them close by.

    Specifications:

  • Shipping dimensions: 51 cm (L) x 37 cm (W) x 17 cm (H)
  • Net Weight: 10 kg
  • Gross Weight: 11,4 kg

Weeding Tools

Stahls' Ez Weeding Table

EzWeedingTable_offen
EzWeedingTable_frontal
EzWeedingTable_zugeklappt

The EZ Weeding TableTM is a table-top attachment that facilitates the weeding of CAD-CUT® films with heat. The 51×91 centimeter tabletop can be angled for ergonomic working. The transfer film is attached to the table top with a clamp so that it cannot slip. The table top can be heated in three stages from 43°C (for small details) to 54°C (for maximum productivity). This heat reduces the adhesive strength of the foil carrier so that it can be weeded with less material breakage. An additional compartment offers storage space for frequently used accessories, such as the STAHLS' EZ Weeder.

    Specifications:

  • Net Weight: 14kg
  • Gross Weight: 18 kg
  • Dimensions: 109 cm (L) x 81 cm (W) x 20 cm (H)
  • Working area: 51cm x 91cm

The EZ Weeding Table comes with a 2-year warranty!

Stahls' Ez Weeder

Stahls-EZ-Weeder

This tool simplifies the weeding of CAD-CUT® and CAD-COLOR® films.

LED Pin, LED Weeder and Tweezers

LED-Weeder_Pin_Tweezers

Pin and Weeder have an ergonomic handle, which makes the tool comfortable to hold. The handle is made of high-quality, sturdy plastic, which reduces the weight. The LED on the tip provides excellent visibility of the material and facilitates weeding. LED PIN with straight metal tip, LED Weeder with curved hook. The tweezers with their fine, curved tip complete the tool set.

Available individually or as a set.

Miscellaneous

Heat Printing Equipment Cart

scherentisch_web

The Heat Printing Equipment Cart is a stable, height-adjustable table that can carry up to 272 kg. This makes it ideal for the Hotronix Dual Air Fusion IQ™ as well as other heat presses and textile finishing accessories.

The heavy duty table is made of steel and has a powder coated finish. The worktop can be adjusted to heights between 43 and 89 centimetres. Movable wheels enable even heavy equipment to be moved in the room or pushed to the side.

Interchangeable lower platens

With the help of the exchange base plates you can increase the flexibility of your heat press: the printing of children's T-shirts, sleeves or shoes - no problem with the matching base plate.

Bodenplatten-Produkt-Image

Sprint® Mag/MAXX™ Clam/Hotronix® Fusion IQ™/Air Fusion IQ™

  • 18cm (circular)
  • 10 cm x 10 cm
  • 15 cm x 25 cm
  • 20 cm x 25 cm
  • 28 cm x 38 cm
  • Shoeplate: 15 cm x 38 cm
  • Sleeve/trouser leg plate: 15 cm x 51 cm
  • Hat Bill Plate
  • Can Cooler Plate
Interchangeable-lower-platens_Hotronix-Tag-Along-Platen_Stahls-Europe
Tag Along™ Platen
The Tag Along™ HP Platen gives you the ability to press two applications at the same time. All you have to do is to place the textile on the press, place the transfers and press - it's easy, saves your company time, and optimizes your efficiency. The Quick-Change system makes the base plate compatible with all 40 x 50 cm Hotronix® presses.
Kappenpresse-2

Sprint® Mag Cap/MAXX™ Cap/Clam Basic Cap

  • 6,0 cm x 8,0 cm
  • 7,0 cm x 16,0 cm
  • 7,5 cm x 14,5 cm
  • 9,0 cm x 16,0 cm
  • 10,0 cm x 16,0 cm
  • 10,0 cm x 22,0 cm

Pressure pad non-stick coated

Andruckkissen_web

The pads are used to evenly distribute the pressure, e.g. when printing near V-necks, buttons, zippers, etc.; 2cm thick, foamed inner part and a pad sewn with non-stick material.

Available in the following sizes:

  • 41 cm x 51 cm for oversized shirts
  • 25 cm x 25 cm for youth shirts
  • 16 cm x 20 cm for shorts and shoulders
  • 13 cm x 46 cm for sleeves and legs

Also available as set (1 x per size)

Print Perfect Pad

PrintPerfectPads-alle2-800x800

Increases the print area for perfect proofing - anytime.

  • 9 cm x 40 cm
  • 20 cm x 25 cm
  • 13 cm x 15 cm

Foam Pad

0000936_foam-cover-pad_800
This approx. 10 cm x 20 cm pad helps when heat applying dimensional emblems and patches with a heat press. Available in tree thicknesses, the thicker the emblem, the thicker the pad you use. ATTENTION: The pad reduces your temperature by approx. 20°C, please take note when pressing on.
  • thickness 0,3 cm
  • thickness 0,6 cm

Thermal tape / dispenser

Abroller-fuer-Thermoband

Thermoband:

  • To fix your heat transfers on the textiles
  • Heat resistant up to 204°C
  • ca. 66m long

Dispenser:

  • To insert the thermal tape
  • Stable footing

Heating plate cleaner

Heizplattenreiniger
  • Available individually
  • Stable footing

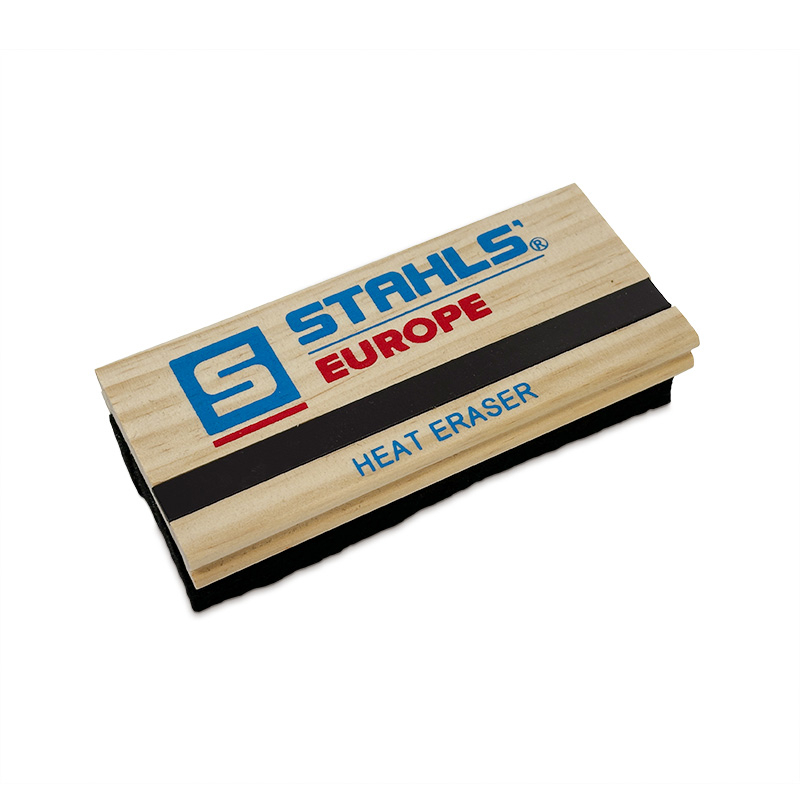

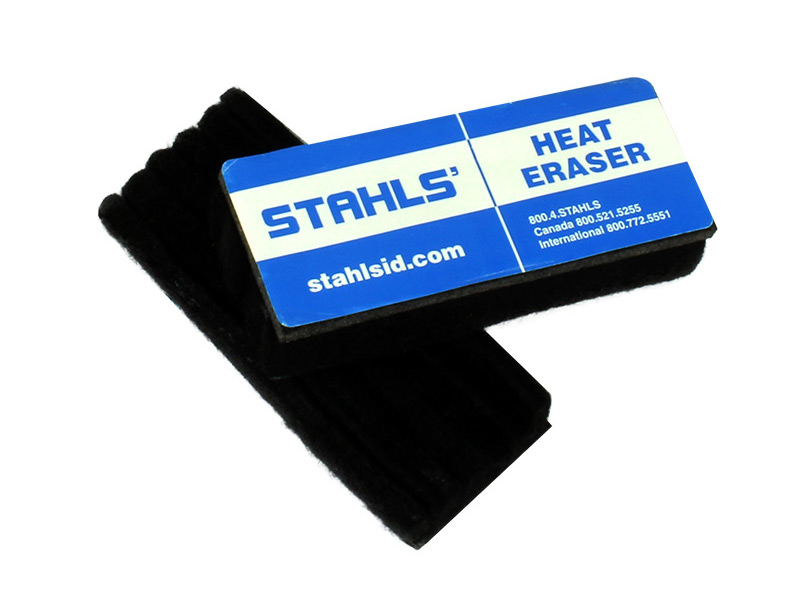

Heat Eraser

ACCESSORIE_Heat-Eraser_Stahls-Europe
  • Cleans the base and heating plate
  • Allows your heat transfers to cool faster

Squeegee

Rakel

For attaching the heat-resistant transfer medium (e.g. Magic Mask® High Tack) for digital print transfers.

Temperature Test Strip

Temperaturteststreifen_4

Temperature Stripes are thermometers made of paper which undergoes chemical change. When the temperature printed on the paper is reached, the indicator changes colour from light grey to black.

This change in colour is irreversibel so that the measuring strip provides proof that a certain temperature was reached during the measurement.
